Replacing Instrument Panel Switches

1. Disconnect the wire from the terminal «minus» battery.



2. Remove the car radio from the center console of the instrument panel (see «Removal and installation of the car radio»).



3. From the inside of the central console wring out clamps and take the block of switches.

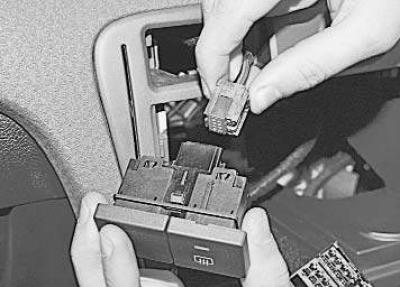

4. Squeeze the latch..



5.... and disconnect the block of wires from the terminals of the switch box.



6. Remove the coin holder in the same way and disconnect the block from the holder's terminals.

Note. Depending on the configuration, instead of the coin holder, a switch for the dynamic stabilization system can be installed (ESP) or the airbag deactivation indicator lamp.

7. Install switches in reverse order.
