Replacement of the main and additional mufflers

You will need: socket heads «on 10», «at 15».

1. Place the vehicle on a pit or lift.

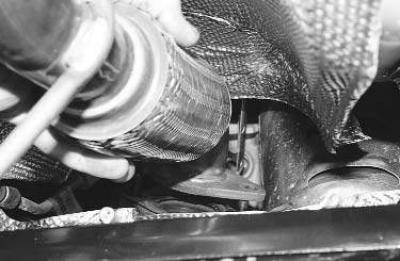

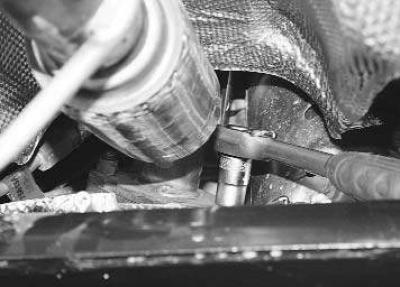

2. Unscrew the two nuts securing the intake pipe flange to the collector flange..



3.... and remove the exhaust pipe flange from the studs.

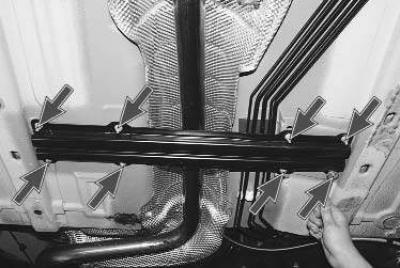

4. Remove eight nuts..

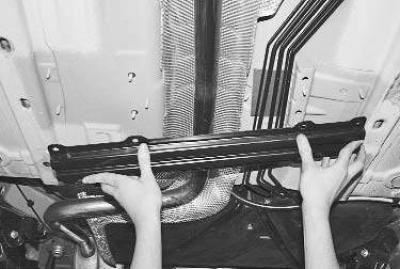

5.... and remove the body cross member.

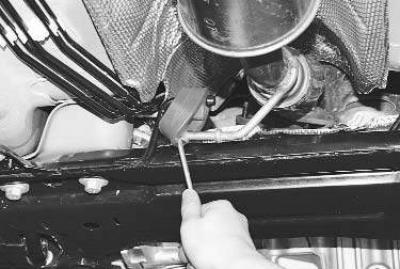

6. Pry with a screwdriver and slide the cushion off the front bracket of the additional muffler.

7. Similarly, remove the remaining pillows from the exhaust system suspension brackets..



8.... and remove the mufflers, carefully leading them through the opening between the base of the body and the rear suspension beam.

9. Establish mufflers in an order, the return to removal.
